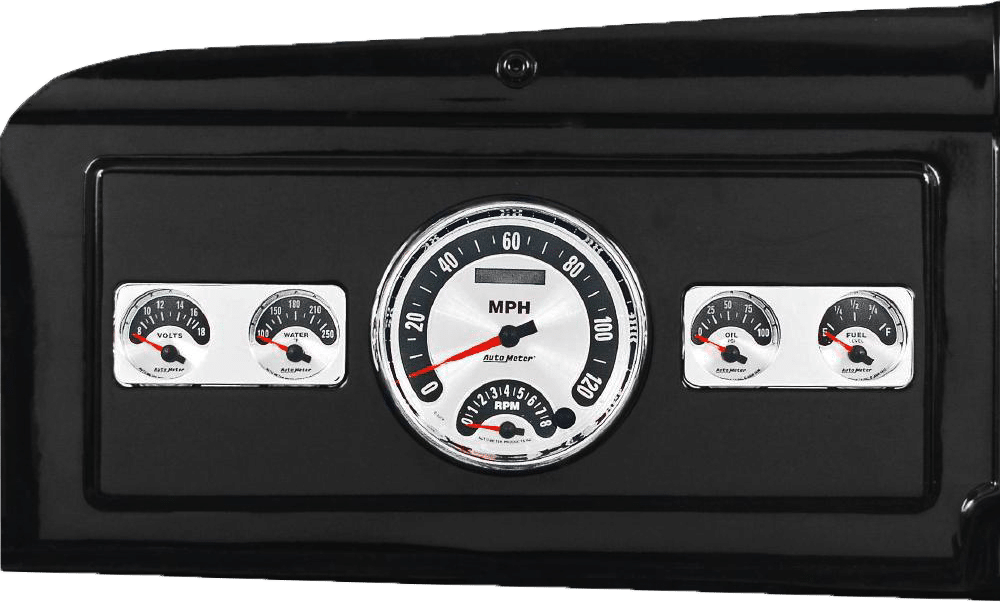

1939-1947 Dodge Truck Billet Aluminum Dash Insert w/ Auto Meter American Muscle Gauges
$1,154.95
Includes aluminum gauge panels & Auto Meter American Muscle gauges.
Gauges include:
- 5” 120 MPH / 8,000 RPM electric speedometer/tachometer combination gauge
- 2 1/16” 100 psi electric oil pressure
- 2 1/16” 100-250 degree electric water temperature
- 2 1/16” 8-18 VDC voltmeter
- 2 1/16” fuel level (choose ohms from drop down menu)
- Sending units are included for oil pressure & water temperature gauges
California Residents: Prop 65 WARNING Birth Defects and Reproductive Harm
Description
Gauge Features- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Package includes oil pressure sender, water temperature sender, sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), mounting hardware, and detailed instructions for installation.
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
- Oil Sender 2242 – Water Sender 2258
- 3/8″ NPT and 1/2″ NPT adapter fittings
- Brackets Included
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 17 × 9 × 5 in |
| Gauge Panel Finish | Brushed Finish, Polished Finish |
| Fuel Level Options | 240-33 ohms (works w/ ATM3262), 0-90 ohms (late model GM), 75-10 ohms (early Ford) |
