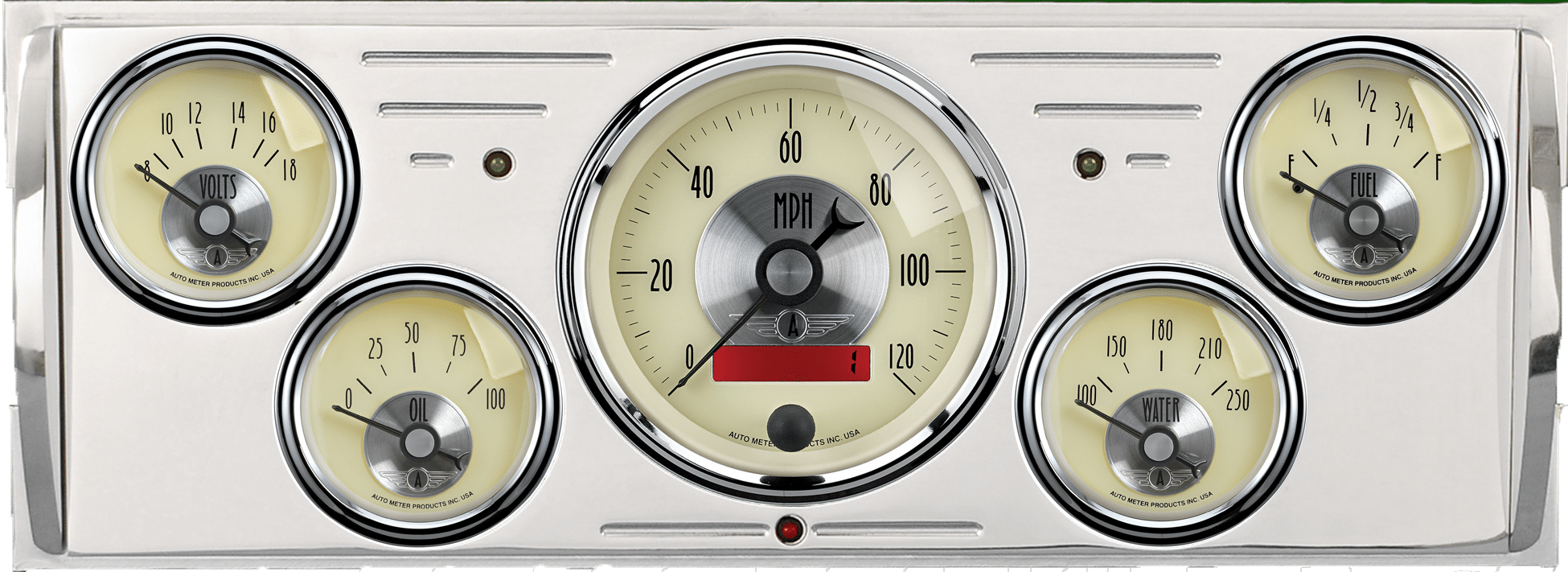

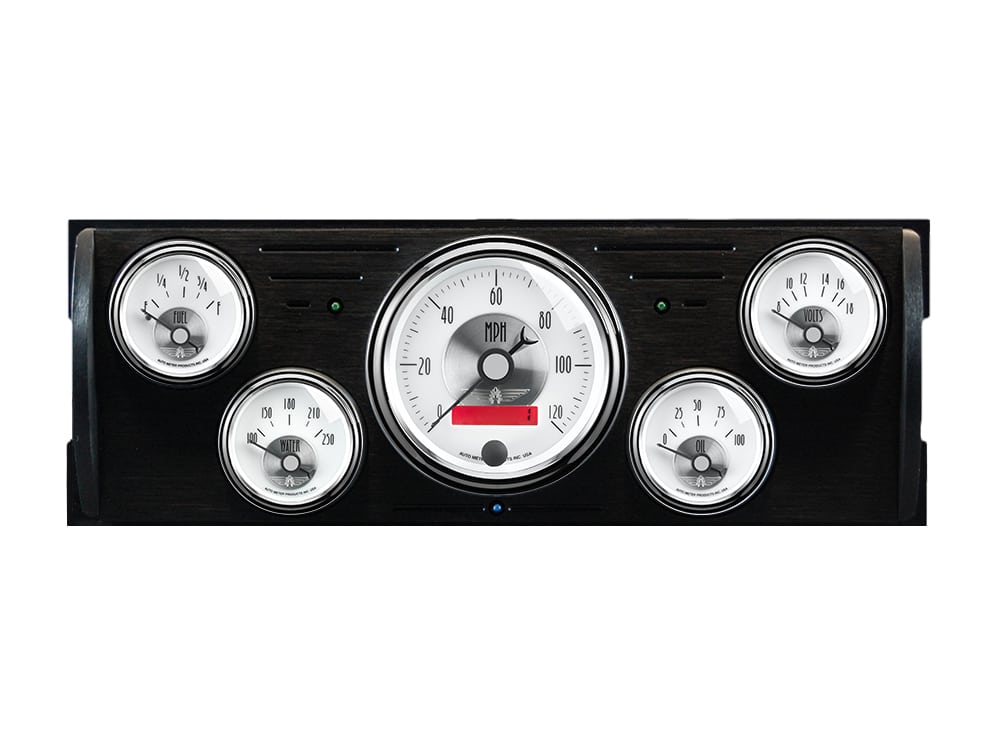

1940-1946 Chevy Truck Billet Aluminum 5 Gauge Panel w/ Auto Meter Prestige Series
Price range: $967.95 through $1,116.45
Includes aluminum dash insert, Auto Meter Prestige series gauges & turn signal/high beam indicators.
Gauge series choices:
- Black Diamond
- Antique Ivory
- Prestige Pearl
Gauges include:
- 3 3/8” speedometer (choose 120 MPH electric wheel or LCD odometer) (Black Diamond has an additional option of 140 MPH GPS)
- 2 1/16” 100 PSI electric oil pressure
- 2 1/16” 100-250 F electric water temperature
- 2 1/16” 8-18 VDC voltmeter
- 2 1/16″ 240-33 ohm fuel level
- Includes oil pressure, water temperature, fuel level, and either GPS Antenna or GM style electronic speedometer senders
Description
Gauge Features- Modern LED through-the-dial lighting provides clear visibility during nighttime use
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), mounting hardware, and detailed instructions for installation.
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- These highly accurate GPS Speedometers include an omnidirectional 10 Hz antenna (10 samples per second) with a 16ft. cable, which is required for operation. The dimensions for the antenna are quite small (1.472 in. x 1.339 in. x 0.508 in.) allowing it to be easily hidden. The GPS antenna utilizes up to 3 GPS satellites simultaneously and samples 10 times per second
- Speedometer has a simple 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Fuel Sender 3262 – Oil Sender 2242 – Water Sender 2258 – GPS Antenna 5283 or 5293
- 1/8″ NPT Male to 1/8″ compression fitting, 1/8″ NPT Female to 1/8″ compression fitting, 1/8″ NPT to 1/4″ NPT bushing, 3/8″ NPT and 1/2″ NPT adapter fittings.
- Brackets Included
Additional information
| Weight | 7.5 lbs |
|---|---|
| Dimensions | 17.75 × 9 × 6.5 in |
| Gauge Panel Finish | Brushed Finish, Polished Finish |
| Gauge Series | Antique Ivory, Black Diamond, Prestige Pearl |
| Speedometer Options | 140 MPH GPS, 120 MPH Electronic (Wheel Odometer), 120 MPH Electronic (LCD Odometer) |
