1947-1953 Chevy Truck Billet Aluminum Adapter Rings w Auto Meter Prestige Series Gauges

Includes aluminum adapter rings & Auto Meter Prestige series gauges.

Series choices include:

Gauges include:

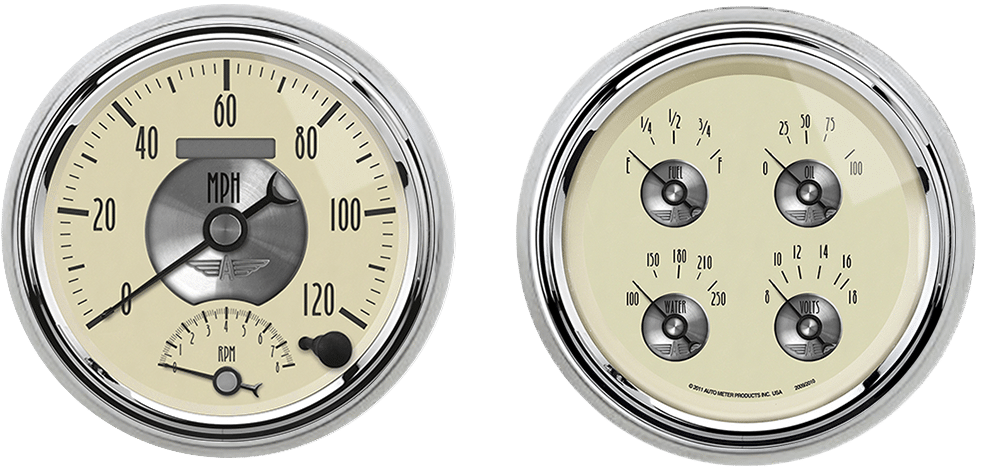

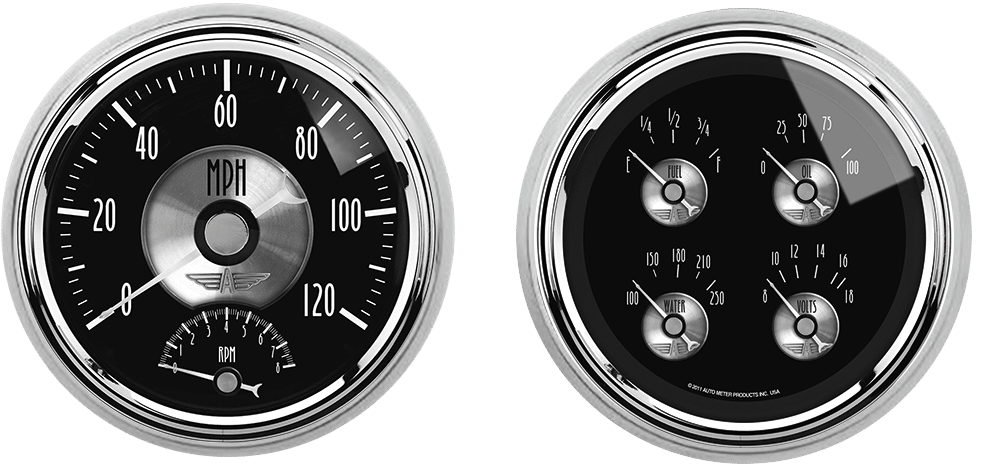

5” electric 120 MPH / 8,000 RPM combination speedometer/tachometer gauge
5” Quad gauge (100 PSI oil pressure, 100-250 F water temperature, 8-18 VDC voltmeter, & 240-33 ohm fuel level)
Includes oil pressure, water temperature, fuel level, and GM style electronic speedometer senders

Description

Feature Points

Modern LED through-the-dial lighting provides clear visibility during nighttime use
Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8″ – 18THD), sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), mounting hardware, and detailed instructions for installation.
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
Tachometer is compatible with 0.5 – 6 pulse ignition signals (1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions.
Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters

Ships With
