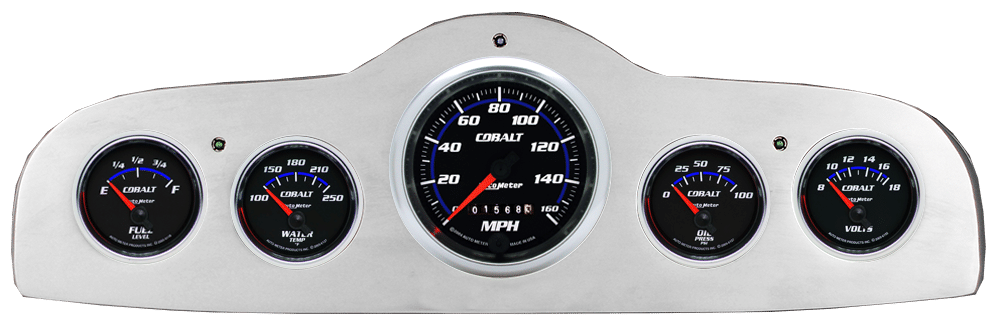

1949-1952 Pontiac Aluminum Gauge Panel w/ AutoMeter Cobalt Gauges

Name: 1949-1952 Pontiac Aluminum Gauge Panel w/ AutoMeter Cobalt Gauges
SKU: 98759-CB
Availability: InStock

Price range: $758.95 through $1,088.95

Includes aluminum dash insert, Auto Meter Cobalt gauges, & turn signal/high beam indicators.

Gauges include:

3 3/8” speedometer (choose from drop down menu)
2 1/16” 100 PSI oil pressure
2 1/16” 100-250 F water temperature
2 1/16” 8-18 VDC voltmeter
2 1/16” fuel level (choose from drop down list)
Sending units are included for the oil pressure & water temperature gauges.

WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Gauge Panel Finish

Fuel Options

Speedometer Options

Clear

SKU: 98759-CB Category: 1949-1952 Pontiac Gauge Panels Tags: 49 50 51 52 Pontiac Gauges, Auto Meter Cobalt Gauges

Description

Cobalt Feature Points

Modern blue LED through-the-dial lighting provides clear visibility during nighttime use

GPS Feature Points

Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
These highly accurate GPS Speedometers include an omnidirectional 10 Hz antenna (10 samples per second) with a 16ft. cable, which is required for operation. The dimensions for the antenna are quite small (1.472 in. x 1.339 in. x 0.508 in.) allowing it to be easily hidden. The GPS antenna utilizes up to 3 GPS satellites simultaneously and samples 10 times per second
No calibration is needed! Just wire up power, ground, and lighting, connect the antenna and you’re ready to go!
The GPS Speedometer’s Rally Nav screen will display pertinent information such as odometer, trip odometer, date/time, GPS coordinates, directional heading, peak speed recall, 0-60 MPH, 60-0 MPH, and inclinometer (pitch and roll).
Gauge kit includes GPS antenna, spade connectors for wiring, mounting hardware, and detailed instructions for installation
12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Plug and Play, no calibration required!
Utilizes up to 3 GPS satellites simultaneously and samples 10 times per second

Ships With

5283

Electronic Speedometer Feature Points

Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
Features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
Compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
Simple push button, 2 mile drive calibration. No dip switches!
Reprogram at any time to accommodate changes in gear ratio or wheel and tire combination.
Gauge kit includes mounting hardware and detailed instructions for installation

Additional information

Weight	7 lbs
Dimensions	18 × 9 × 5 in

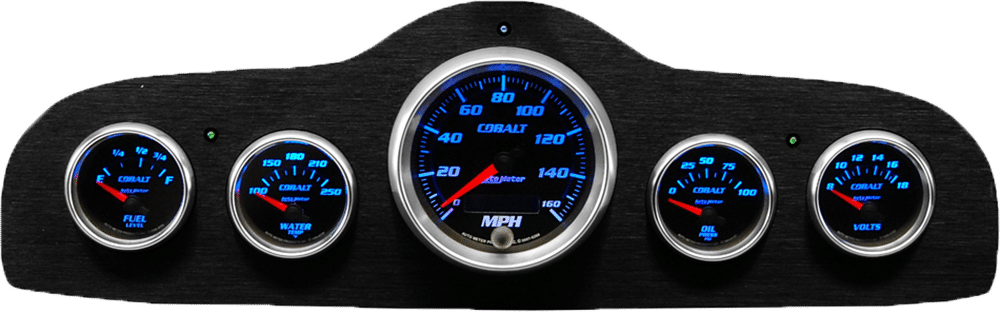

Gauge Panel Finish	Brushed Finish, Polished Finish, Brushed Black Finish
Fuel Options	240-33 ohms (works with ATM3262), 0-90 ohms (late GM), 75-10 (Pre 87 Ford)
Speedometer Options	160 MPH Mechanical Speedometer, 160 MPH Electric Speedometer, 140 MPH GPS (built in) Speedometer, 225 KPH GPS (built in) Speedometer
