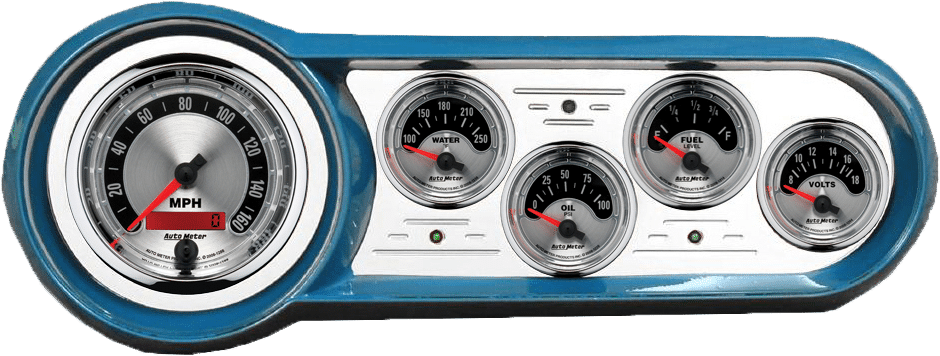

1953-1954 Chevy Car Billet Aluminum Dash Insert w/ Auto Meter American Muscle Gauges
$841.50
Includes aluminum gauge panel, Auto Meter American Muscle gauges, & LED lights (turn signal & high beam indicators).
Gauges include:
- 3 3/8” 160 MPH electric speedometer
- 2 1/16” 100 psi electric oil pressure
- 2 1/16” 100-250 degree electric water temperature
- 2 1/16” 8-18 VDC voltmeter
- 2 1/16” 240-33 ohm fuel level.
- Sending units are included for oil pressure, water temperature, fuel level, and speedometer (GM style)
Mounts into stock bezel (not included).
Installation Instructions
Description
Gauge Features- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8″ – 18THD), sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), mounting hardware, and detailed instructions for installation.
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
- Fuel Sender 3262 – Oil Sender 2242 – Water Sender 2258 – 5293 VSS Sensor
- 3/8″ NPT and 1/2″ NPT adapter fittings
- Brackets Included
Additional information
| Weight | 7.25 lbs |
|---|---|
| Dimensions | 17.75 × 9 × 5 in |
| Gauge Panel Finish | Brushed, Polished |
Be the first to review “1953-1954 Chevy Car Billet Aluminum Dash Insert w/ Auto Meter American Muscle Gauges”
You may also like…
-
1953-1954 Chevy Car Billet Aluminum Gauge Panel w/ Dakota Digital VHX-1050 Black Alloy Gauges
$962.50 Select options This product has multiple variants. The options may be chosen on the product page -
1953-1954 Chevy Car Billet Aluminum Gauge Panel w/ Auto Meter Cobalt Gauges
Price range: $736.95 through $1,083.50 Select options This product has multiple variants. The options may be chosen on the product page -
1953-1954 Chevy Car Billet Aluminum 5 Gauge Panel w/ Auto Meter Prestige Series
Price range: $940.50 through $1,094.50 Select options This product has multiple variants. The options may be chosen on the product page -
AUTO METER 9114 DIMMING CONTROL MODULE FOR USE WITH LED LIT GAUGES (UP TO 6)
$46.15 Add to cart -
AutoMeter 2198 Universal 6 Gauge Wiring Harness
$149.50 Add to cart
Related products
-
1953-1954 Chevy Car Aluminum Gauge Panel w/ Auto Meter Phantom Gauges
Price range: $599.50 through $901.95 Select options This product has multiple variants. The options may be chosen on the product page -
1939 Chevy Car Billet Aluminum Dash Insert w Auto Meter American Muscle Gauges
$890.95 Select options This product has multiple variants. The options may be chosen on the product page -

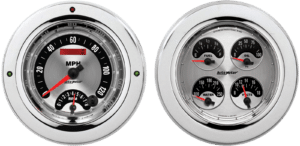

1954-1955 1st Series Chevy Truck Aluminum Adapter Rings w/ Auto Meter American Muscle Gauges
