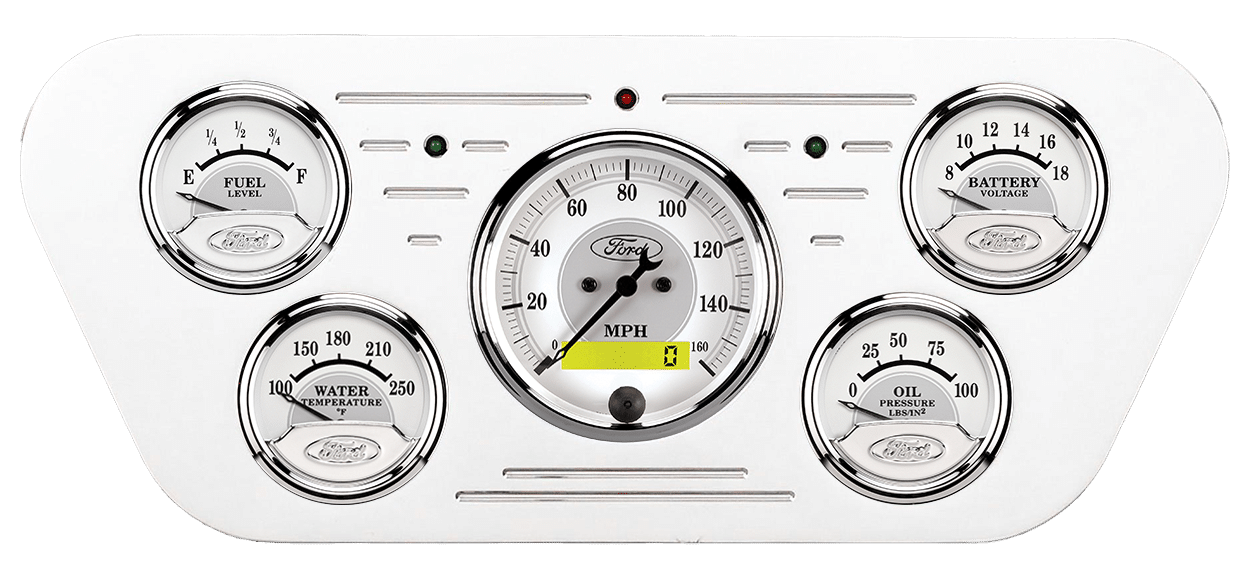

1953-1955 Ford Truck Billet Aluminum Gauge Panel w/ AutoMeter Ford Masterpiece Silver Gauges

Name: 1953-1955 Ford Truck Billet Aluminum Gauge Panel w/ AutoMeter Ford Masterpiece Silver Gauges
SKU: 23003-MS
Availability: InStock

Price range: $714.95 through $725.95

Includes aluminum dash insert, Auto Meter Ford Masterpiece Silver gauges & turn signal/high beam indicators.

Gauges include:

3 1/8″ 160 MPH electronic speedometer
2 1/16″ 100 PSI electric oil pressure
2 1/16” 100-250 F water temperature
2 1/16” 8-18 VDC voltmeter
2 1/16” 240-33 ohm fuel level.
Sending units are included for the speedometer, oil pressure, water temperature, & fuel gauges.

Gauge Panel Finish

Clear

Description

Feature Points

Traditional incandescent lighting illuminates around the perimeter of the dial
Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8″ – 18THD), sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers

Ships With
