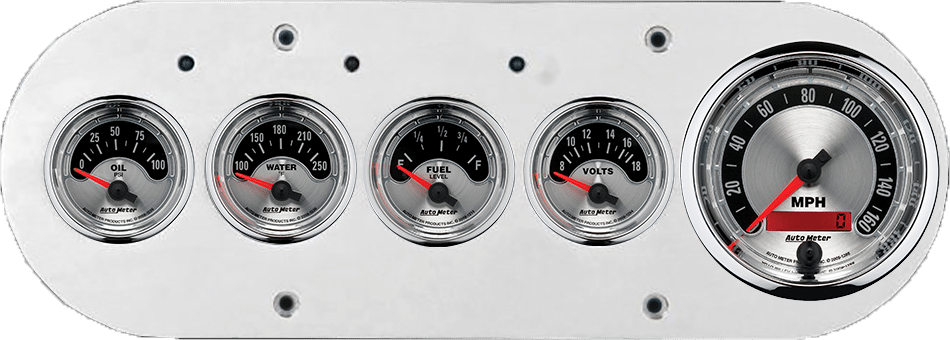

1954-1958 Dodge Truck Billet Aluminum Dash Insert w/ Auto Meter American Muscle Gauges
$890.95
Includes aluminum gauge panel, Auto Meter American Muscle gauges, & LED lights (turn signal & high beam indicators).
Gauges include:
- 3 3/8” 160 MPH electric speedometer
- 2 1/16” 100 psi electric oil pressure
- 2 1/16” 100-250 degree electric water temperature
- 2 1/16” 8-18 VDC voltmeter
- 2 1/16” 240-33 ohm fuel level.
- Sending units are included for oil pressure, water temperature, fuel level, and speedometer (GM style)
WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Description
Gauge Features- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8″ – 18THD), sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), mounting hardware, and detailed instructions for installation.
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
- Fuel Sender 3262 – Oil Sender 2242 – Water Sender 2258 – 5293 VSS Sensor
- 3/8″ NPT and 1/2″ NPT adapter fittings
- Brackets Included
Additional information
| Weight | 7.5 lbs |
|---|---|
| Dimensions | 17.75 × 9 × 5 in |
| Gauge Panel Finish | Brushed Finish, Polished Finish |
