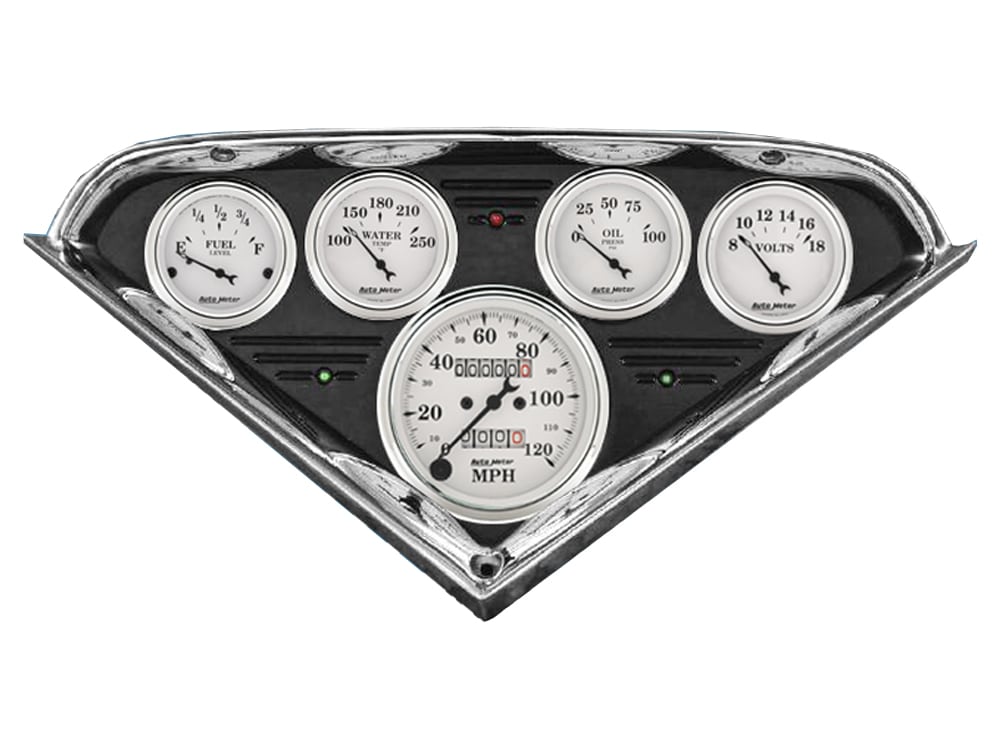

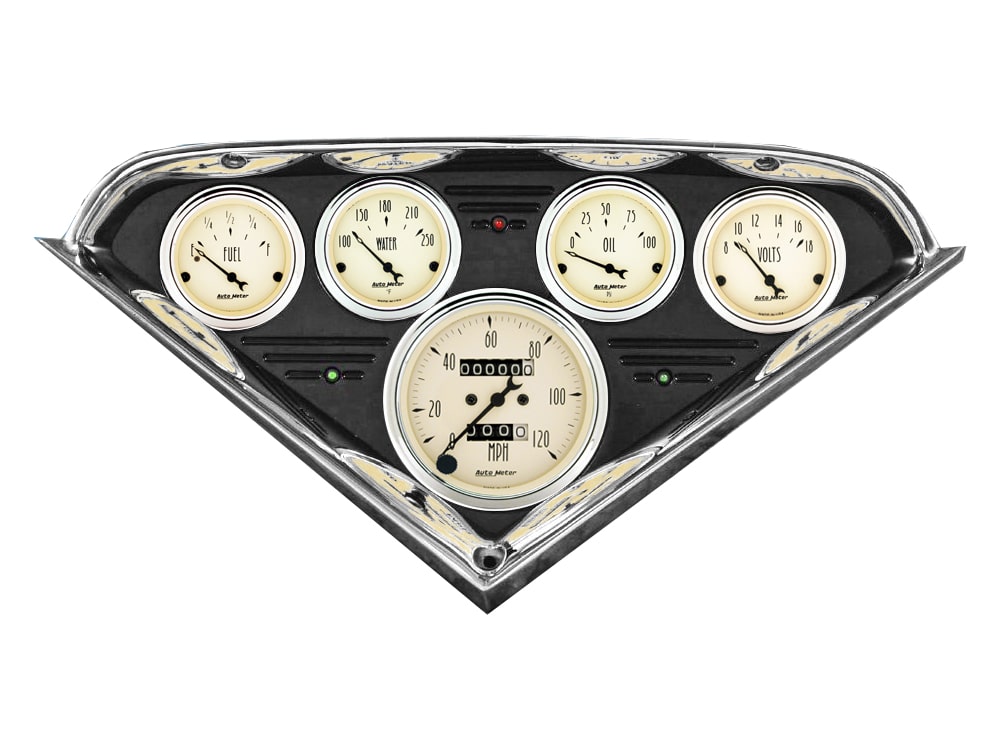

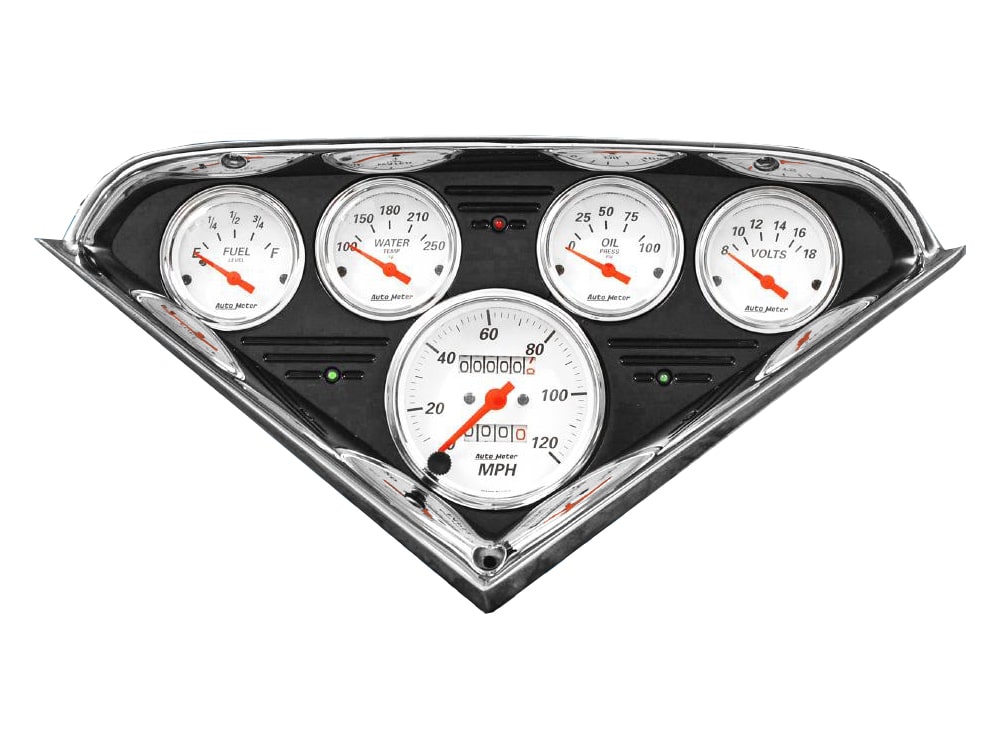

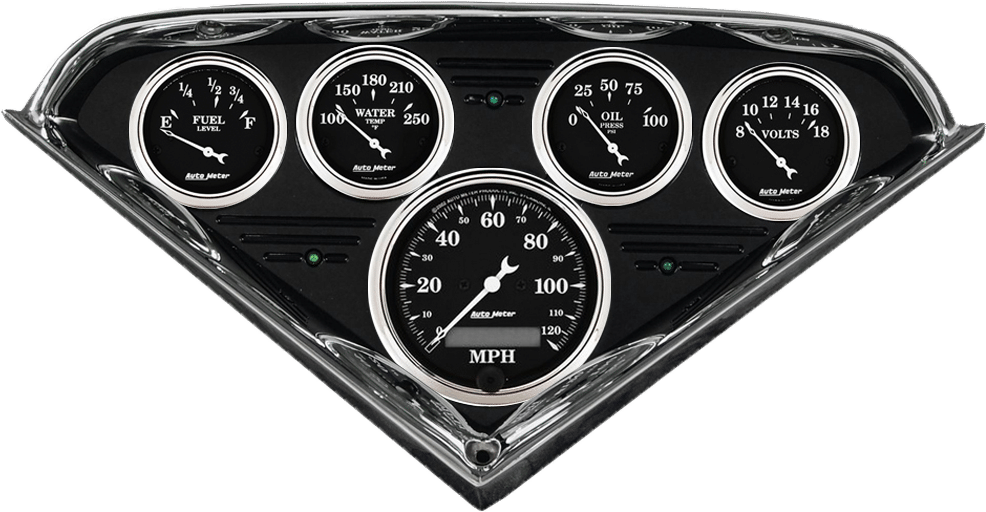

1955-1959 Chevy Truck Billet Aluminum Gauge Panel w/ Auto Meter Street Rod series gauges (Black Anodized)

Name: 1955-1959 Chevy Truck Billet Aluminum Gauge Panel w/ Auto Meter Street Rod series gauges (Black Anodized)
SKU: 13003B-SR
Availability: InStock

Price range: $544.50 through $599.50

Includes aluminum dash insert, Auto Street Rod series gauges & turn signal/high beam indicators.

Gauge series choices:

Old Tyme Black
Old Tyme White
Antique Beige
Designer Black
Arctic White

Gauges include:

3 1/8″ speedometer (choice of mechanical, electric, or metric)
2 1/16″ 100 PSI electric oil pressure
2 1/16” 100-250 F electric water temperature
2 1/16” 8-18 VDC voltmeter
2 1/16” fuel level (choose ohm range from drop down list)
Sending units are included for the oil pressure & water temperature

Outside chrome bezel sold separately.

Speedometer Options

Gauge Series

Fuel Gauge ohm range

Clear

SKU: 13003B-SR Category: 1955-1959 Chevy Truck Gauge Panels Tag: 55 56 57 58 59 Chevy Truck Gauges

Description

Feature Points

Traditional incandescent lighting illuminates around the perimeter of the dial
Package includes oil pressure sender, water temperature sender, bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.

Ships With

Oil Sender 2242 – Water Sender 2258
3/8″ NPT and 1/2″ NPT adapter fittings
Brackets Included

Additional information

Weight	5 lbs
Dimensions	15 × 9 × 5 in
Speedometer Options	120 MPH Mechanical, 120 MPH Electronic, 190 KPH Electronic
Gauge Series	Designer Black, Old Tyme White, Old Tyme Black, Arctic White, Antique Beige
Fuel Gauge ohm range	0-30 ohms (works w/ stock sender), 0-90 ohms (late model GM), 73-10 ohms (Pre-89 Ford), 240-33 ohms (works w/ ATM3262)
