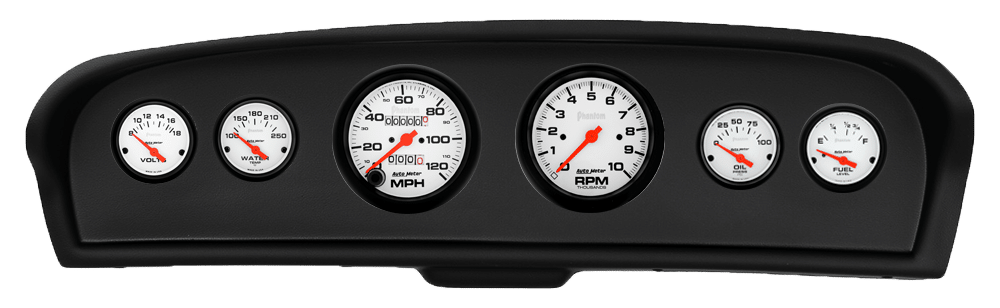

1961-1966 Ford Truck AutoMeter Direct Fit Instrument Panel w/ Phantom Gauges
Direct Fit replacement for OEM instrument bezel in 1961-1966 Ford Truck made from thermoformed UV protected ABS material with Auto Meter Phantom gauges.
Gauges include:
3 3/8? speedometer (choose from drop down list)
3 3/8? 10,000 RPM tachometer
2 1/16? 100 PSI electric oil pressure
2 1/16” 100-250 F electric water temperature
2 1/16” 8-18 VDC voltmeter
2 1/16” fuel level (choose from drop down list)
Sending units are included for the oil pressure & water temperature gauges.
Description
Additional information
| Weight | 8 lbs |
|---|---|
| Dimensions | 24 × 10 × 7 in |
| Speedometer Options | 120 MPH Mechanical, 120 MPH Electric, Metric 190 KPH (electric), 140 MPH GPS, 225 KPH GPS |
| Fuel Gauge Options | 0-90 ohms (works w/ stock sender), 0-30 ohms (early GM), 75-10 ohms (early Ford), 240-33 ohms (works w/ ATM3262) |
