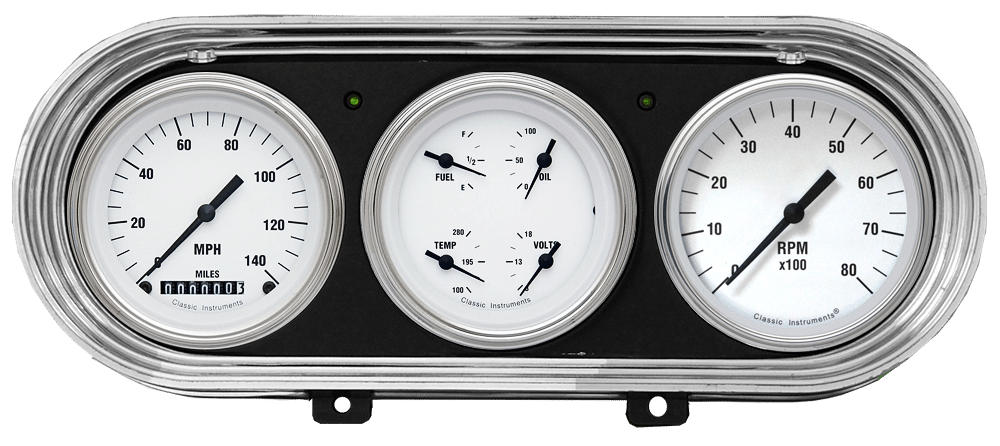

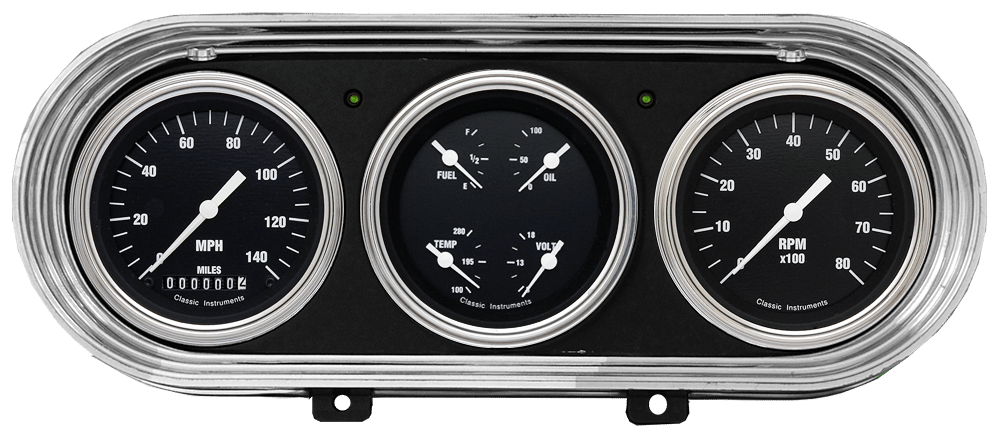

1962-1965 Chevy Nova Billet Aluminum 3 Gauge Panel w/ Classic Instruments Gauges
Includes aluminum dash insert, Classic Instruments gauges & LED lights (turn signal & high beam indicators).
Gauge series choices:
- Hot Rod
- White Hot
- Vintage
- G/Stock
- SG Series
- Traditional
- Classic White
Gauges included in this package:

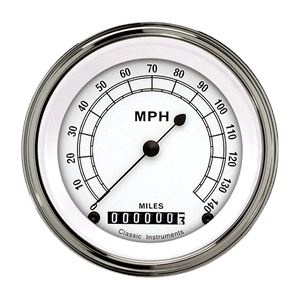

- 3 3/8″ electric speedometer
- 3 3/8″ electric tachometer
- 3 3/8″ Quad gauge (oil pressure, water temperature, fuel level, & voltmeter)
- Includes oil pressure, water temperature, & speedometer senders
A fuel sender will be included when 240-33 ohms is selected for the fuel gauge.
Mounts into stock or aftermarket bezel (sold separately).
Description
Additional information
| Weight | 7.5 lbs |
|---|---|
| Dimensions | 16.5 × 11.5 × 5.75 in |
| Gauge Series | Hot Rod, White Hot, Vintage, G/Stock, SG Series, Traditional, Classic White |
| Gauge Panel Finish | Black Anodized, Polished, Brushed |
| Fuel Gauge Options | 240-33 ohms (includes sender), 0-90 ohms (late GM), 0-30 ohms (early GM), 75-10 ohms (pre-87 Ford) |
| Senders | GM (non-LS), LS senders, Ford senders, Mopar senders |
