1962-1965 Chevy Nova Billet Aluminum Dash Insert w/ Auto Meter American Muscle Gauges
Price range: $945.95 through $995.50
Includes aluminum gauge panel, Auto Meter American Muscle gauges, & LED lights (turn signal & high beam indicators).
Gauges include:

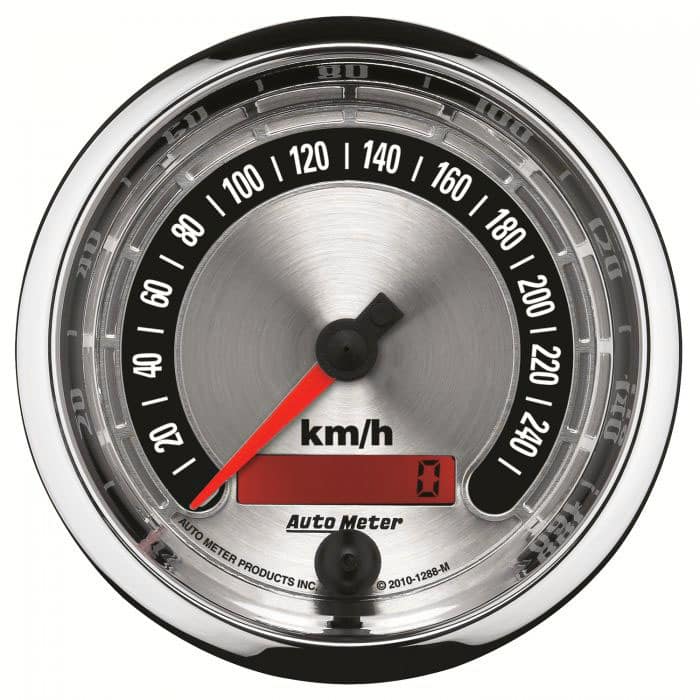

- 3 3/8” speedometer (choose from drop down list)
- 2 1/16” 100 psi electric oil pressure
- 2 1/16” 100-250 degree electric water temperature
- 2 1/16” 8-18 VDC voltmeter
- 2 1/16” fuel level (choose from drop down list)
- Sending units are included for oil pressure & water temperature gauges
Outside chrome bezel sold separately.
Description
Gauge Features- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
- Oil Sender 2242 – Water Sender 2258
- 3/8″ NPT and 1/2″ NPT adapter fittings
- Brackets Included
Additional information
| Weight | 6.5 lbs |
|---|---|
| Dimensions | 15.5 × 9.5 × 5.75 in |
| Gauge Panel Finish | Brushed Finish, Polished Finish |
| Speedometer Options | 160 MPH Electric Speedometer, 260 KPH Electric Speedometer |
| Fuel Gauge ohm Range | 0-30 ohms (works w/ stock sender), 0-90 ohms (late model GM, 240-33 ohm fuel (works w/ ATM3262, 73-10 ohms (Pre-1989 Ford) |
