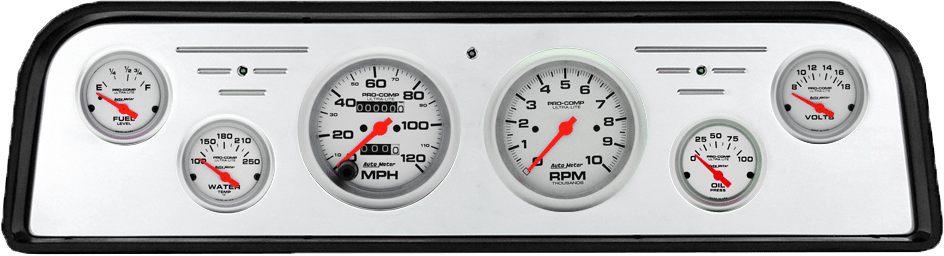

1962-1966 GMC Truck Billet Aluminum Gauge Panel w/ Ultra-Lite gauges
Price range: $824.95 through $1,099.95
Includes aluminum gauge panel, Auto Meter Ultra-Lite gauges, & LED lights (turn signal & high beam indicators).
Gauges include:
- 3 3/8″ speedometer (choose from drop down list)
- 3 3/8″ 10,000 RPM tachometer
- 2 1/16″ 100 PSI electric oil pressure
- 2 1/16” 100-250 F electric water temperature
- 2 1/16” 8-18 VDC voltmeter
- 2 1/16” fuel level (choose from drop down list)
- Sending units are included for the oil pressure & water temperature gauges.
Mounts into stock bezel (must cut to fit).
Installation Instructions
WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 23 × 9 × 6 in |
| Gauge Panel Finish | Brushed Finish, Polished Finish |
| Speedometer Options | 120 MPH Mechanical, 120 MPH Electric, Metric 190 KPH (electric), 140 MPH GPS (built in) |
| Fuel Gauge Options | 240-33 ohms (works w/ ATM3262), 0-90 ohms (late GM), 0-30 ohms (early GM), 75-10 ohms (pre-87 Ford) |
