SEN-06-1 Dakota Digital Universal Fuel Level Sender
$46.97

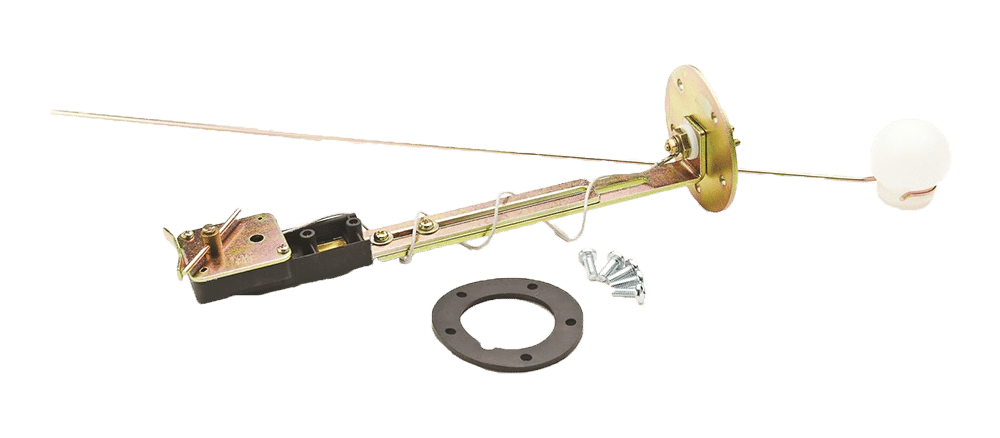

SEN-06-1 – Universal Automotive Fuel Level Sender with an adjustable float will accommodate many aftermarket fuel cells.
- Resistance range: 10 ohms empty -180 ohms full (VDO style)
- GM Style 5-bolt mounting pattern: 2.8” overall flange size, 2.125” bolt circle, 1.7” hole size
- 5x 10-32 x ½” mounting screws and gasket included
- Adjustable to tank depths of 6-23”
- Top-mount applications only; without fuel pickup or return line
- Compatible with all Dakota Digital Automotive gauges (not compatible with Motorcycle or UTV)
*Due to the universal nature of this sensor, verify the specifics of your application before ordering
Additional information
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 13 × 5 × 5 in |
Be the first to review “SEN-06-1 Dakota Digital Universal Fuel Level Sender”
You may also like…
-

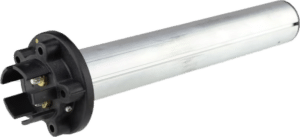

Classic Instruments Tube Style Fuel Senders (choose length & ohm range)
Read more -
SGI-100BT Dakota Digital Speedometer and Tachometer Interface
$125.35 Add to cart -
Auto Meter Universal Fuel Tank Sending Unit (240-33 ohm) 3262
$49.50 Add to cart -

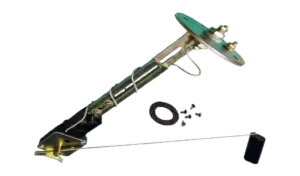

SN35 Classic Instruments Universal Fuel Gauge Sending Unit.
