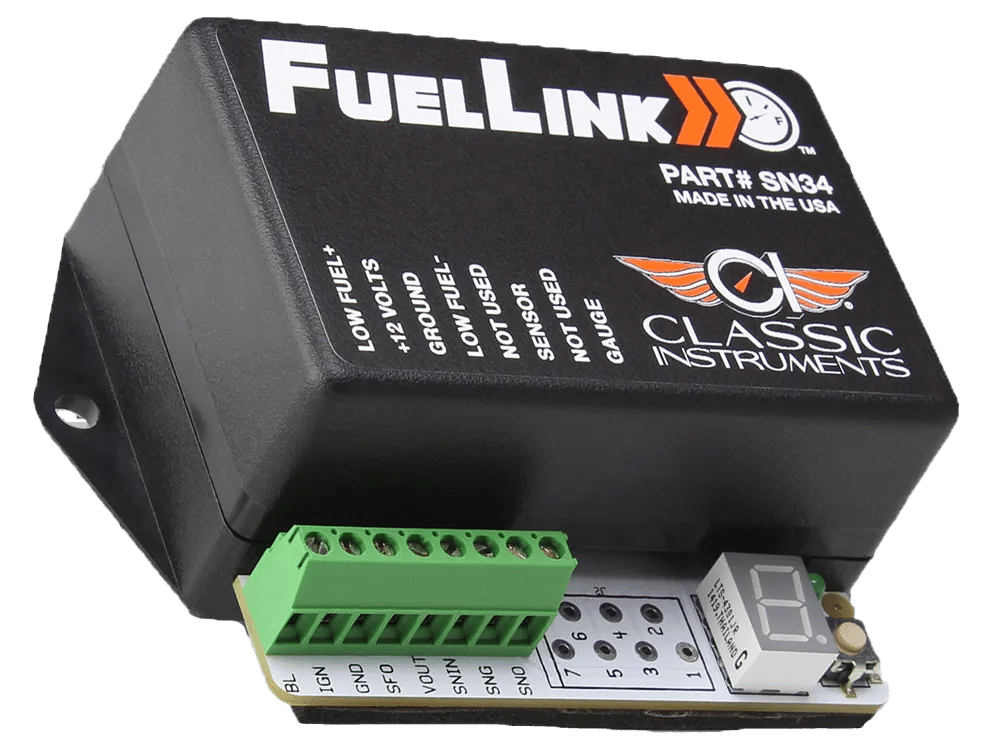

SN34 Classic Instruments FuelLink Fuel Interface Fuel Link

FuelLink Fuel Interface is a problem-solver that acts as an interface between fuel senders and gauges to correct ohm mis-match and erratic movement due to fuel slosh.

• Available in eight preset ohm ranges (empty to full)
1. 240-33
2. 0-90
3. 0-30
4. 16-158
5. 75-10
6. 90-0
7. 10-180
8. 40-250

• Custom-calibrate a special ohm range (between 0-350 ohms)
• The gauge is calibrated at every 1/4 tank reading, ensuring accurate readings.
• Compatible with nearly any short sweet fuel gauge and fuel sender combination
• Easy screw terminal wire connections
• Compact size, 3″ x 2″ x 1.5″, with mounting holes for underdash installation
• On-board pushbutton for LED readout for calibration
• Low Fuel Light trigger at 1/8 tank (works with a LED or incandescent bulb)
• Made in USA
